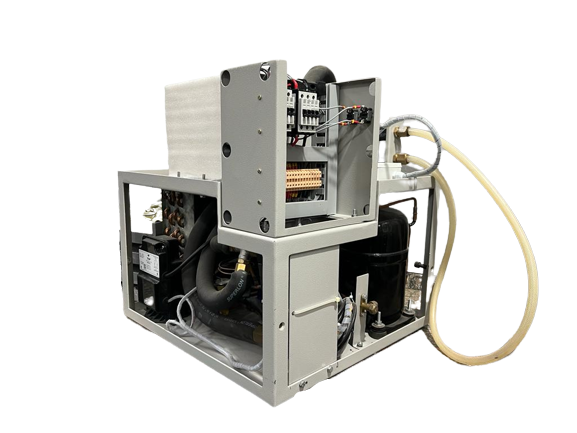

Modular Water Recirculating Chiller
Water line pressure in kg/cm2
Flow Rate in I/min
Tank water level in percentage
Other Features
- Safety time-delay for compressor re-start 3 minutes (adjustable).
- Water filter of 100 micron at suction line of the pump.
- Compact brazed plate heat exchanger for high cooling efficiency.
- Powder coated MS body for corrosion free use.
- Castor wheels for easy movement.
Specifications
| Sr. No. | Parameters | Values |
|---|---|---|
1 2 3 4 5 6 7 8 9 10 11 12 13 14 | Compressor Refrigerant Condenser Evaporator Water Tank Capacity Display Tank Material Water recirculation pump Temperature Accuracy Water Piping Pipe Connection Water supply connections Power Requirement Physical dimensions | Emerson Copland 0.6TR R134a Forced air cooled Compact Plate Heat Exchanger 10 L 5″ Remote HMI display Polypropylene Rotary vane pump (Brass) ± 0.1 oC Braided PVC pipe 9.5 mm ID 3/8″ BSP SS/ Brass Construction 230V / 1 PH / 50 Hz 520mm x 620mm x 550mm (L x H x B) |
