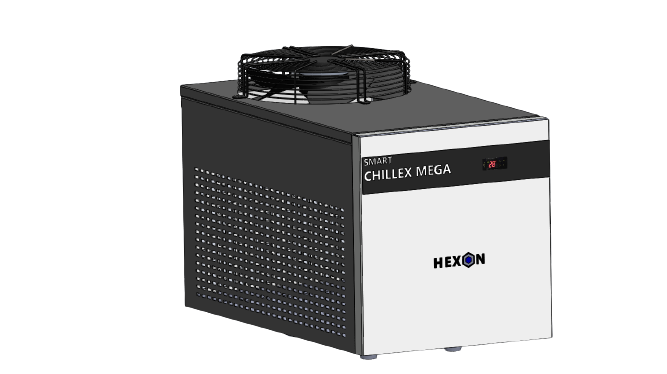

Smart Chillex Mega (>5Tr)
Smart Chillex Mega (>5Tr)
Smart Chillex Mega comes with an inbuilt smart technology featuring alerts and system-cutoff during low water flow or low water level. Smart polar is backed-up by efficient and timely maintenance service.

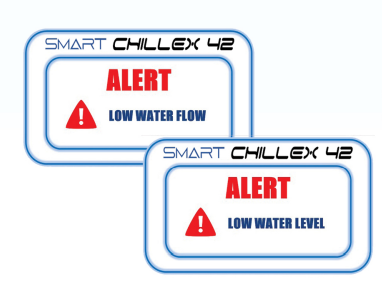

Automated Alerts
Error screen automatically pops up when system has Low Water Flow 6‹ Low Water Level, saving the system from dry run damage.

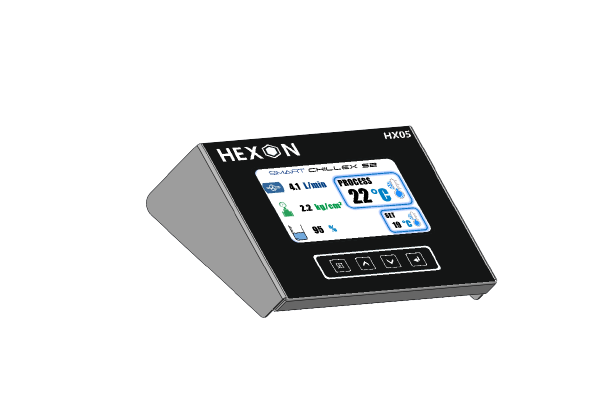

Home Screen
Home screen or front page on the display con- sists of, Flow rote in L/min, Water line pressure in kg/cm* and Tank water level in percentage(°/‹)
Operation & Buttons
On pressing SET button the display moves to second screen where you can set temperature using the RAISE button to increase setpoint, LOWER to de- crease the setpoint and ENTER button to send value to the system.
In-Built Data Logging System
System logs data and error status at every 30 sec. It also enables easy extraction of error log via memory card for system.
| Log (Date & Time) | Flow (L/min) | Pressure (kg/cm²) | Water Level (%) | Set Temperature (°C) | Process Temperature (°C) |
|---|---|---|---|---|---|
| 02-11-2021, 16:53:30 | 4.4 | 3.5 | 70 | 18 | 20 |
| 02-11-2021, 16:54:00 | 4.4 | 3.5 | 70 | 18 | 20 |
| 02-11-2021, 16:54:30 | 4.4 | 3.5 | 70 | 18 | 20 |
- Safety time-delay for compressor restart 3 minutes (adjustable).
- Water filter of 100 micron at the suction line of the pump.
- Compact brazed plate heat exchanger for high cooling efficiency.
- Powder-coated MS body for corrosion-free use.
Specifications
| Specification | Details |
|---|---|
| Heat Dissipation Capacity | 15,500 k Cal / hr (max) |
| Water Flow Rate | 08–30 Ltrs/min. (adjustable) |
| Supply Water Pressure | 2–5 kg/cm² (preset on bypass valve) |
| Supply Water Temperature | 10–25°C (adjustable) |
| Temperature Control | Digital set point controller with 5-inch LCD display (±1°C accuracy) |
| Water Tank Capacity | 100 Liters (approximate) |
| Chiller | 05 Ton |
| Power Requirement | 415 Volts, 3 Phase, 50 Hz, 20 Amps |
| Physical Dimension of Unit | 950 mm × 1450 mm × 1550 mm (W × D × H) |
Other Features
- Safety time-delay for compressor re-start 3 minutes (adjustable).
- Water filter of 100 micron at suction line of the pump.
- Compact brazed plate heat exchanger for high cooling efficiency.
- Powder coated MS body for corrosion free use.
- Castor wheels for easy movement.
