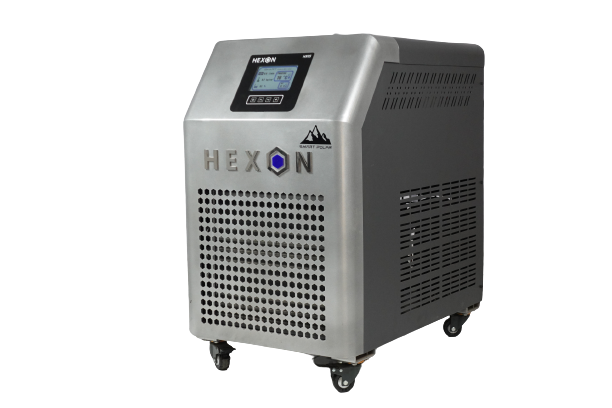

Smart Chillex Mini

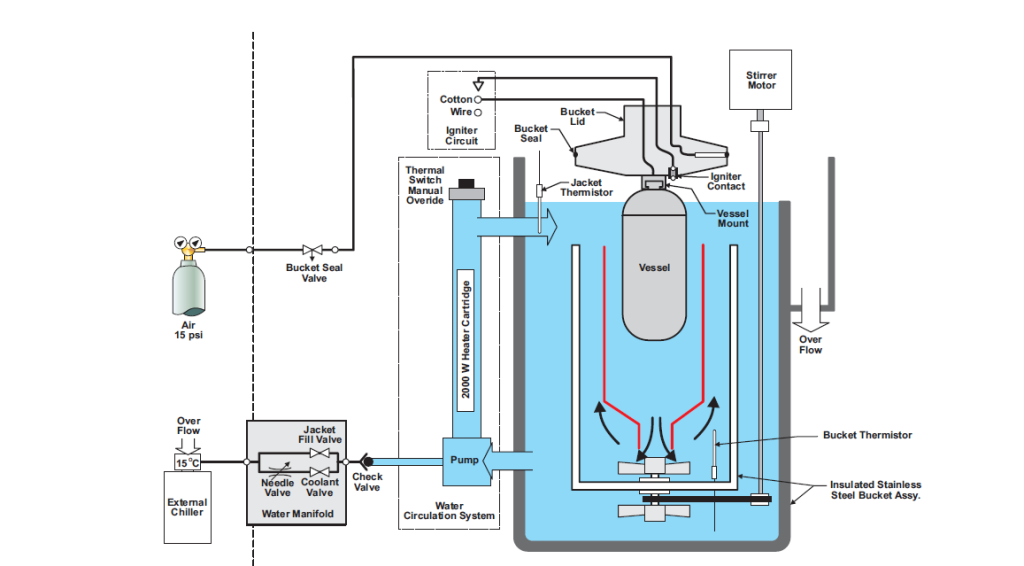

Efficient Cooling For Bomb Calorimeter
In Smart Polar the cooling/heating jacket regulates the process temperature.
The smart polar comes with an inbuilt smart technology featuring alerts and system-cutoff during low water flow or low water level. Smart polar is backed-up by efficient and timely maintenance service.
Automated Alerts for Smart Polar
Error screen automatically pops up when system has Low Water Flow 6‹ Low Water Level, saving the system from dry run damage.

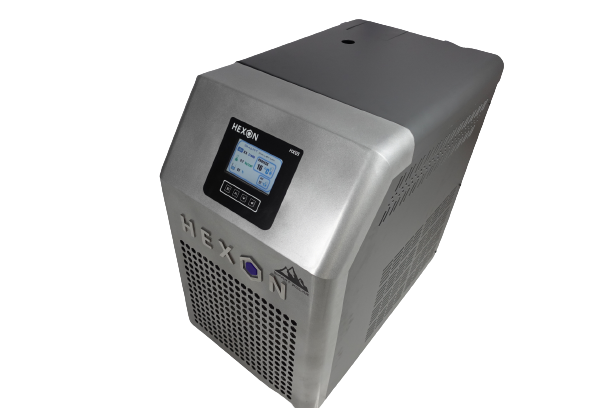

Home Screen of Smart Polar
Home screen or front Dage on the display consists of, Flow rote in L/min, Water line pressure in kg/cm° and Tank woter level in percentage(°/ ).
Operation & Buttons of Smart Polar
On pressing the set button. The display moves to the second screen, where you can set the temperature using the RAISE button to increase the setpoint, LOWER to decrease the setpoint, and ENTER to send the value to the system.
Features
In-Built Data Logging System for Smart Polar
Smart Chillex System logs data and error status at every 30 sec. It also enables easy extraction of error log via
memory card for system.
Specifications
| Sr. No. | Parameters | Values |
|---|---|---|
1 2 3 4 5 | Heat dissipation capacity Fluid medium Water flow rate Supply Water Pressure Supply Water Temperature | 950 kcal/h (Max.) Distilled water 1 — 2 L/min (adjustable) 1 to 3 kg/cm2 12 to 30 oC (adjustable) |
| Sr. No. | Parameters | Values |
|---|---|---|
1 2 3 4 5 6 7 8 9 10 11 12 13 14 | Compressor Refrigerant Condenser Evaporator Water Tank Capacity Display Tank Material Water recirculation pump Temperature Control Water Piping Outlet Water Piping Pipe Connection Water supply connections Power Requirement Physical dimensions | Rotary Compressor 0.5 TR R134a Forced air cooled Compact Plate Heat Exchanger 13 L Nextion 5″ HMI Polypropylene Rotary vane pump (Brass) Digital Setting & Readout (+ 1 oC) Braided PVC pipe 9.5 mm ID Hose connector pipe 6 mm ID 3/8″ BSP SS/ Brass Construction 230V / 1 PH / 50 Hz 445mmx695mmx770mm (wxdxh) |
Customizable Feature and Other Features
The Smart polar can be customized as per your requirements, the users can pick to choose the feature they want to add to
- Ambient Temperature
- Humidity
- Remote Display
- Smart polar Safety time-delay for compressor re-start 3 minutes (adjustable).
- Smart polar Water filter of 100 micron at the suction line of the pump.
- Compact brazed plate heat exchanger for high cooling efficiency.
- Smart polar powder-coated MS body for corrosion-free use.
- Smart polar Castor wheels for easy movement.
